Industry 4.0

Featured Case Study 1: CO2 Laser Marking for Shrink Film

TTB engineered a custom CO₂ laser marking enclosure built around the Videojet Gemini 30W IP54 SHC100c straight laser, providing a safe, fully integrated marking solution for industrial production lines. The laser is housed in a light‑tight, safety‑interlocked enclosure featuring a single access door secured with a dual‑channel fork safety switch to meet stringent machine‑safety requirements.

The laser is mounted on an adjustable bracket, offering approximately 16 mm horizontal and 30 mm vertical positioning to ensure precise alignment during operation. The system includes a dedicated entry port for customer‑supplied extraction hardware, supporting clean and compliant laser marking.

Safety outputs from the dual‑door switch (2× NC contacts) are delivered via a 5‑metre ferrule‑terminated cable for straightforward integration with existing control systems. The enclosure frame is constructed from anodised aluminium and polycarbonate, with final design adjustments made to suit the customer’s machine layout and application needs.

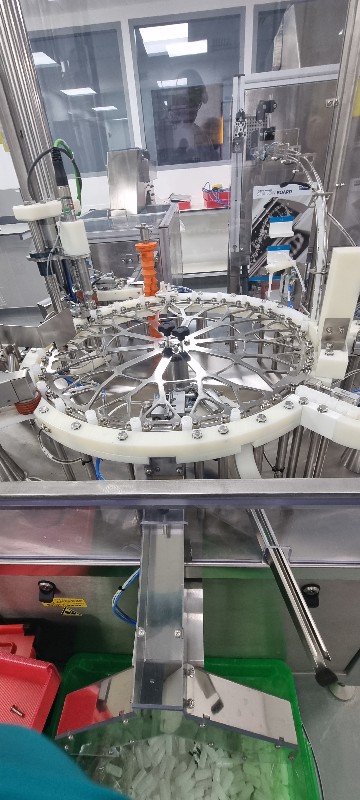

Featured Case Study 3: Filling, Capping and Inspection Line

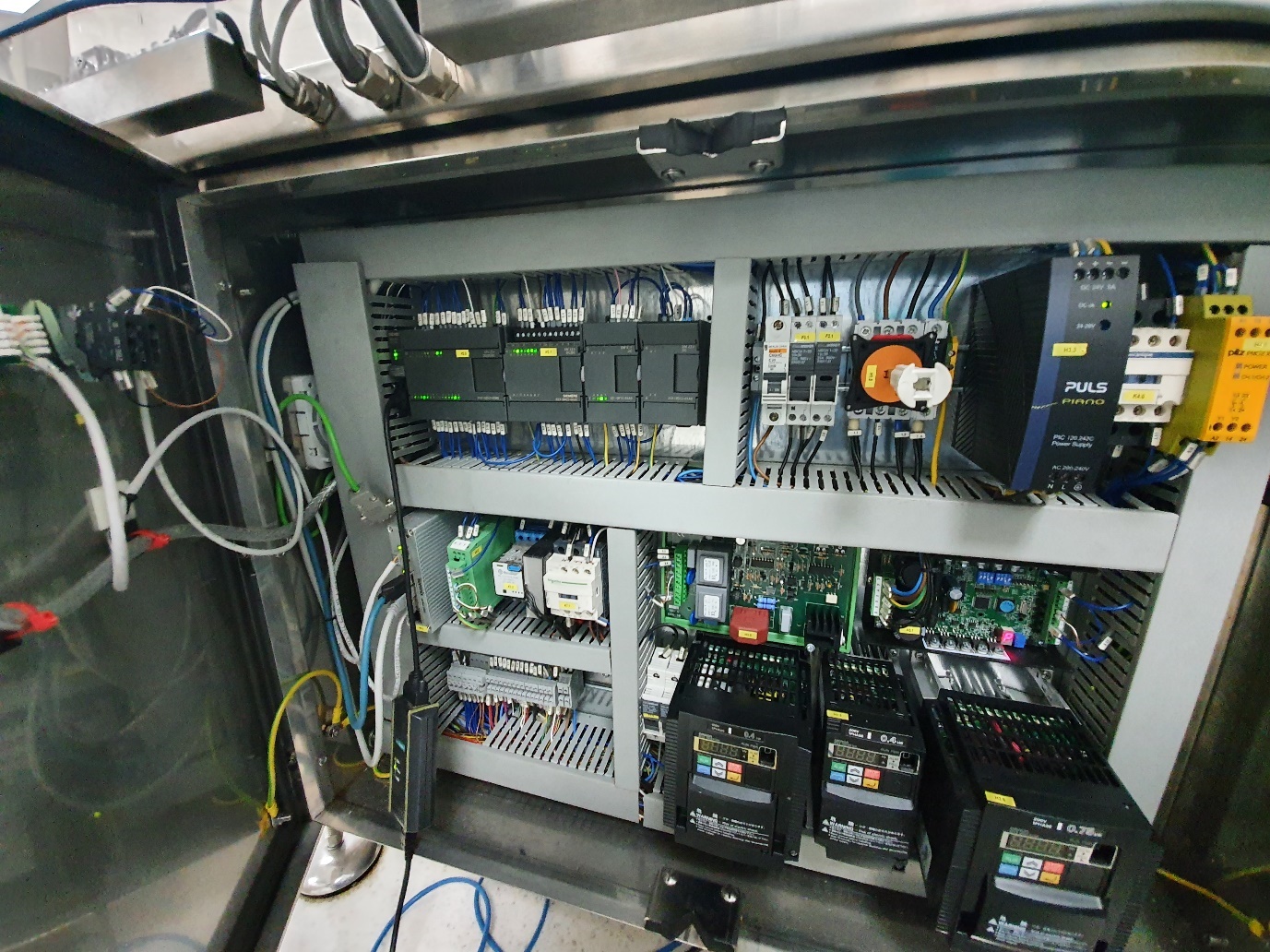

TTB supplied a high‑performance filling and capping line for the Life Science industry, engineered with a durable SS304 stainless‑steel frame, polycarbonate guarding and precision‑machined nylon components. The system is controlled via a Siemens safety PLC, ensuring full compliance with Life Science safety and validation standards.

A fully integrated vision inspection system verifies correct cap application by monitoring cap position, number of turns and applied torque from the capping assembly. Products that pass inspection move to a wraparound labelling station, where a Cognex vision camera confirms accurate label placement before release to downstream processes.

This automated solution improves quality control, reduces manual handling and supports Industry 4.0‑ready traceability across critical Life Science packaging operations.

Filling, Pre-capping, Torque Tightening, Check and Labelling

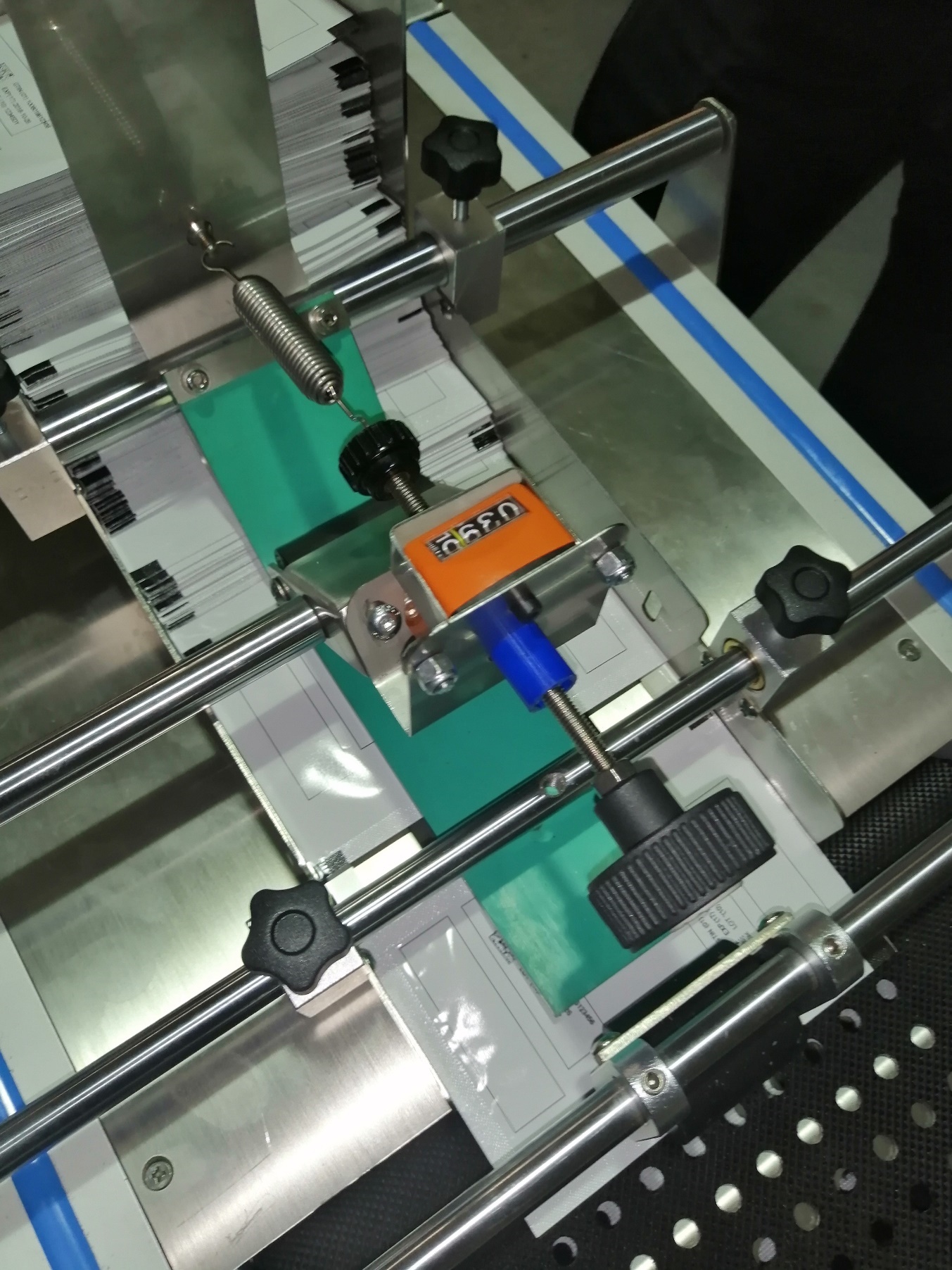

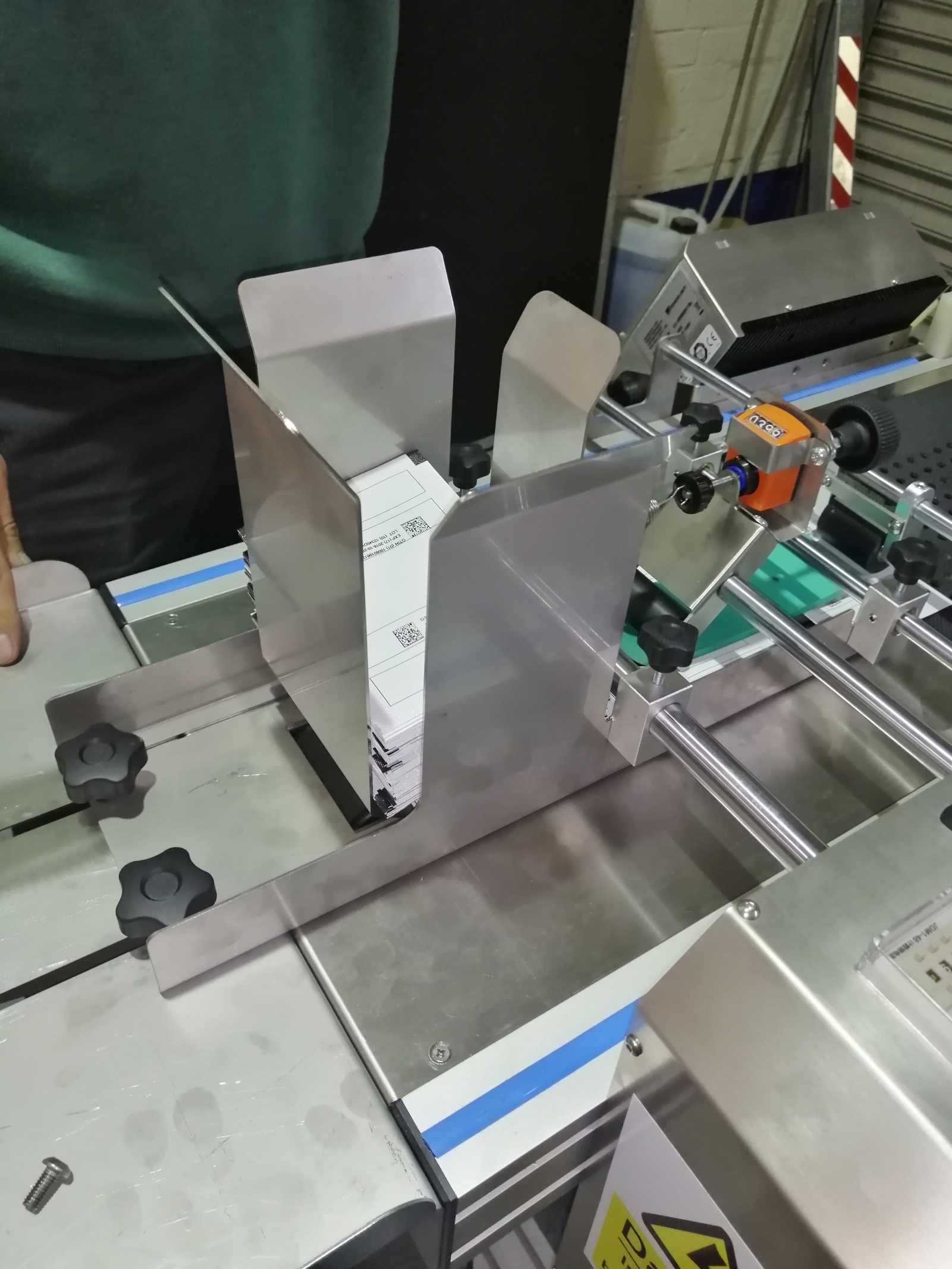

Featured Case Study 2: Pouch Printing Using Thermal Inkjet Printer

The Technology Business Ltd has delivered a fully automated pouch, bag, leaflet and flat‑sheet printing system designed for modern Industry 4.0 production lines. The solution integrates 1–4 CIJ print heads (with scalable custom configurations) and a high‑stability vacuum conveyor to ensure accurate, consistent print quality across a wide range of materials.

Flexible product feeding and stacking options support diverse manufacturing workflows, while optional flattening rollers maintain perfect print alignment on pouches and other bulky substrates. Additional Industry 4.0‑ready modules — including product counting, vision inspection, and custom automation features— allow the system to be tailored to specific customer requirements
